Rotary indexers with fixed division

Main applications of each type

Type RTX	Barell cam	Switching angle is bigger than dwell angle Mostly intermittent Rotation time (fixed) – Rest time (variable)
Type RT	Barell cam	Switching angle is bigger than dwell angle Mostly intermittent Rotation time (fixed) – Rest time (variable)
Type TT	Barell cam	Switching angle is bigger than dwell angle Mostly intermittent Rotation time (fixed) – Rest time (variable)
Type TSR	Barell cam	Switching angle is bigger than dwell angle Mostly intermittent Rotation time (fixed) – Rest time (variable) Very large center hole
Type XP / TP / SP	Flat cam	For clocking of chains and belts Swinging of gripper arms Turning and sorting of components
Type TG	Globoidal cam	Dwell angle is bigger than switching angle Mostly continuous operation Rotation time – Rest time (both fixed) For machines with central drive and high cycle rates

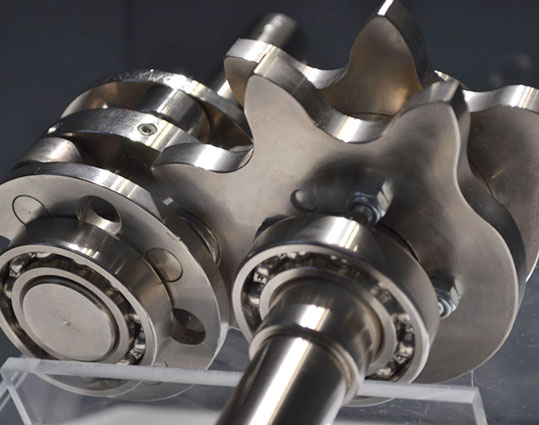

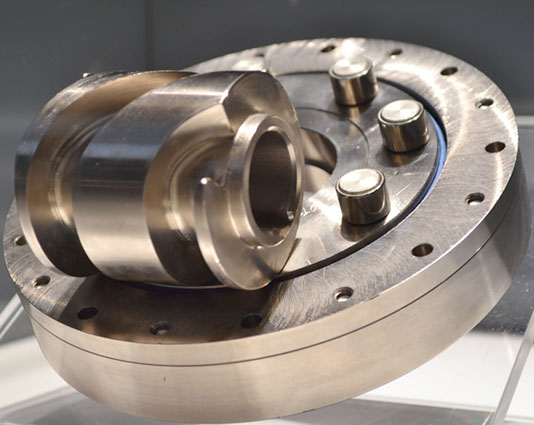

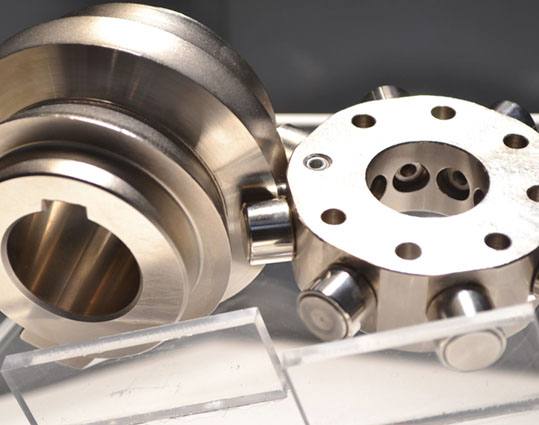

Barell cam Flat cam Globoidal cam
