Rotary indexer with flexible division

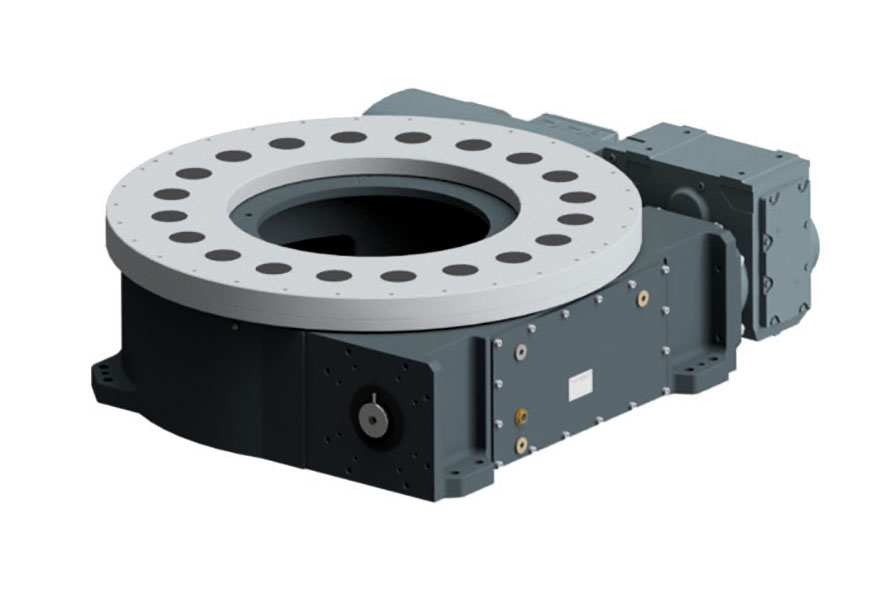

Rotary indexer type TMF

External content - Youtube

Here, you can find content of a third-party provider, which can be displayed with one click.

The external provider might be able to collect user specific data by activating this content. For more information please check out our data protection.

Common applications

The flexible rotary indexer TMF is ideal for using in the assembly, in the automotive industry, for welding machines,
in printing machines, in the food industry, in the medical technology and the microelectronics.

Features and user benefits

  • Flexible division
  • Low construction height because of a flat output flange
  • Large number of cam followers
    – Accordingly always at least 4 pieces engaged
  • Almost no margin because of biased cam followers
  • Through optimally hardened barrel cams and cam
    followers higher transferable torques
  • Design possible as rotary drum
  • Maintenance free through oil bath lubrication

  • Simple readjustment of the output bearing through segmental arches in peeling sheet design
  • Large center hole for e. g. accommodation
    of supply lines
  • Large bearing surface for mounting components
  • Specially developed for the automotive industry
    and other applications in the heavy duty sector
  • Various installation positions possible
